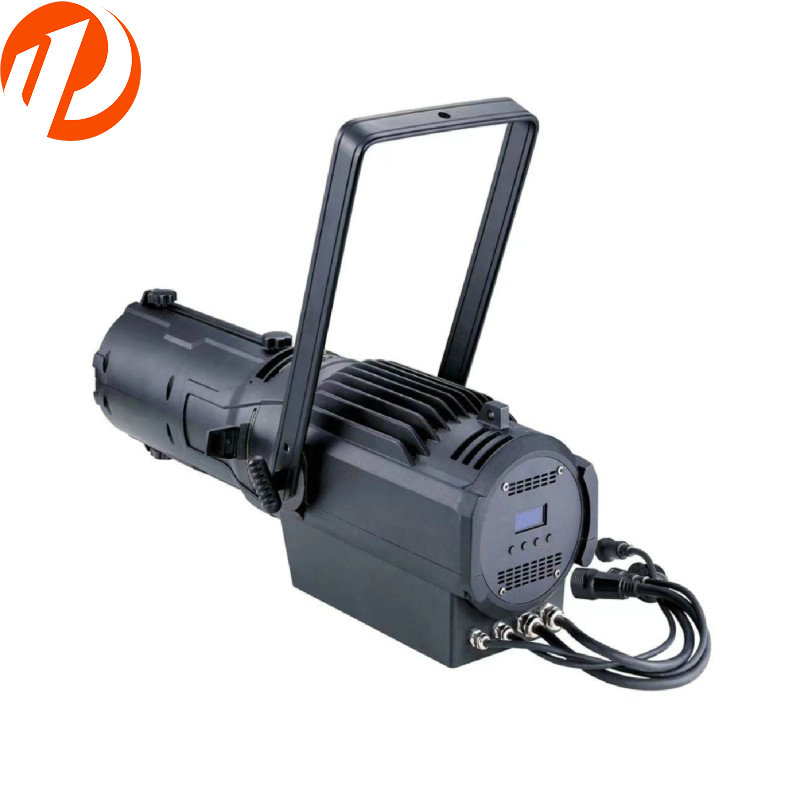

UP-CX300A/UP-CX400A
UPLIGHT
main parameter:
1. Input voltage / frequency: AC100-240V, 50 / 60Hz;
2. Power supply power: 400W/500W;
3. Rated power: 350W/450W;
4. Bead power: 300W/400W;
5. Color temperature: 3200K / 5600K;
6. Dimming: 0-100% linear dimming;
7. Strobe: 1-25 times / second;
8. Lens Angle: 15-45°;
9. Chassis characteristics: full die-cast lamp body, good heat dissipation;
10. Working environment temperature: -20℃ -40℃;
11. Heat dissipation system: low-noise fan heat dissipation;
12. illuminance LUX: 9200LUX (beam Angle 15 degrees measurement distance of 5 meters);
13. Product appearance: aluminum alloy;
14. Channel mode: 2. channel mode;
15. Control mode: DMX512 signal, self-walking, sound control mode;
16. Power cord: POWERCON input / output;
17. Protection level: IP20;
18. Net weight: 13.5kg;
19. Gross weight: 15kg;
20. Product size: 300 * 221 * 735mm;
21. Packaging size: 880 * 310 * 345mm;
main parameter:
1. Input voltage / frequency: AC100-240V, 50 / 60Hz;
2. Power supply power: 400W/500W;
3. Rated power: 350W/450W;
4. Bead power: 300W/400W;
5. Color temperature: 3200K / 5600K;
6. Dimming: 0-100% linear dimming;
7. Strobe: 1-25 times / second;
8. Lens Angle: 15-45°;
9. Chassis characteristics: full die-cast lamp body, good heat dissipation;
10. Working environment temperature: -20℃ -40℃;
11. Heat dissipation system: low-noise fan heat dissipation;
12. illuminance LUX: 9200LUX (beam Angle 15 degrees measurement distance of 5 meters);
13. Product appearance: aluminum alloy;
14. Channel mode: 2. channel mode;
15. Control mode: DMX512 signal, self-walking, sound control mode;
16. Power cord: POWERCON input / output;
17. Protection level: IP20;
18. Net weight: 13.5kg;
19. Gross weight: 15kg;
20. Product size: 300 * 221 * 735mm;
21. Packaging size: 880 * 310 * 345mm;
