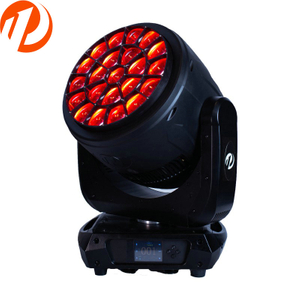

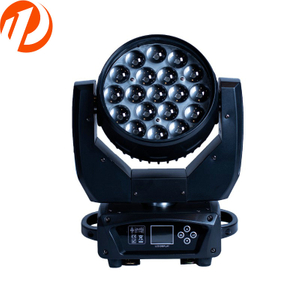

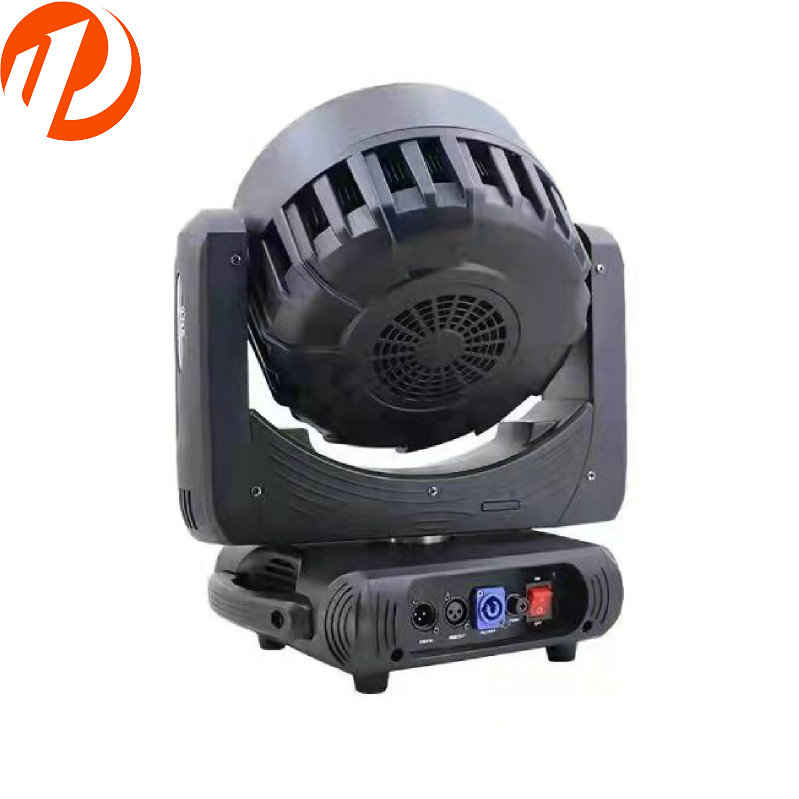

UP-MH3715
UPLIGHT
001
To parameter:
1. Input voltage / frequency: AC100-240V, 50 / 60Hz;
2. Power supply power: 600W;
3. Rated power: 550W;
4. Light source: 37 RGBW 4 and 1 LED, single LED wattage: 15W;
5. Light source life: 20,000 hours;
6. Color temperature: built-in separate color temperature pass, 2500-8000K can be linear adjustment;
7. Beam Angle: 10-60°;
8. Functional effect: staining, light beam, and circle control effect;
9. dimming: 0-100% linear electronic dimming;
10. Strobe: 1-25 times / second strobe speed is adjustable, with instant dark field function;
11. Channel mode: 15 / 31 / 35 three channel modes;
12. Control mode: DMX512 signal, self-go mode;
13. X-axis / Y-axis: 540° / 270°, precision: 16bit precision scan, correction: X-axis / Y-axis position automatic correction;
14. Display screen: use real color display screen, Chinese and English menu, positive and negative display;
15. Signal input and output: 3-core or 5-core Canon socket (optional);
16. Power cable: PowerCon input / output;
17. Working environment temperature: -20℃ -40℃;
18. Protection level: IP20;
19. Net weight: 14kg;
20. Product size: 389 * 300 * 425mm;
To parameter:
1. Input voltage / frequency: AC100-240V, 50 / 60Hz;
2. Power supply power: 600W;
3. Rated power: 550W;
4. Light source: 37 RGBW 4 and 1 LED, single LED wattage: 15W;
5. Light source life: 20,000 hours;
6. Color temperature: built-in separate color temperature pass, 2500-8000K can be linear adjustment;
7. Beam Angle: 10-60°;
8. Functional effect: staining, light beam, and circle control effect;
9. dimming: 0-100% linear electronic dimming;
10. Strobe: 1-25 times / second strobe speed is adjustable, with instant dark field function;
11. Channel mode: 15 / 31 / 35 three channel modes;
12. Control mode: DMX512 signal, self-go mode;
13. X-axis / Y-axis: 540° / 270°, precision: 16bit precision scan, correction: X-axis / Y-axis position automatic correction;
14. Display screen: use real color display screen, Chinese and English menu, positive and negative display;
15. Signal input and output: 3-core or 5-core Canon socket (optional);
16. Power cable: PowerCon input / output;
17. Working environment temperature: -20℃ -40℃;
18. Protection level: IP20;
19. Net weight: 14kg;
20. Product size: 389 * 300 * 425mm;
